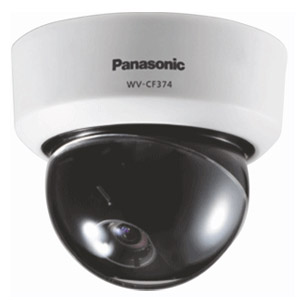

Day/Night Fixed Dome Camera
WV-CF300 Series
WV-CF344 (24 V AC or 12 V DC)
WV-CF354 (24 V AC or 12 V DC)
WV-CF374 (24 V AC or 12 V DC)
Smart look Day/Night Fixed Dome Camera with advanced features
Key Features
• High resolution: 650 TV lines
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx
(B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity
in B/W mode. (WV-CW374)
• High sensitivity with Day/Night (electrical) function: 0.08 lx (Color),
0.05 lx (B/W) at F1.4 (WV-CW344/WV-CW354)
• ABS (Adaptive Black Stretch) enhances visibility of dark area
without degrading image quality in bright area.
• ABF (Auto Back Focus) ensures easy installation (WV-CF354).
• Focus Assist ensures easy installation.(WV-CF344/WV-CF374)
• Various adjustment features including BLC (Back-Light Compensation),
ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
• 16 axis matrix color compensation function enables wider range of
natural color adjustment.
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and
3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
• Electronic shutter from 1/120 to 1/10,000 sec.
• Digital zoom: Up to 2x
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian, Japanese
• Wide coverage :
WV-CF344 Horizontal: 100.3 °, Vertical: 73.5 °
WV-CF354 Horizontal: 100.3 °, Vertical: 73.4 °
WV-CF374 Horizontal: 100.8 °, Vertical: 73.8 °
• Lens Distortion Compensation
• On screen display menu
• Monitor output and ELC mode for easier lens adjustment upon installation
• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
• Various mounting options: Surface mount, Embedded mount (with
optional WV-Q174)
• Smart look fits for various applications such as shopping mall,
hotels and hospitals.
